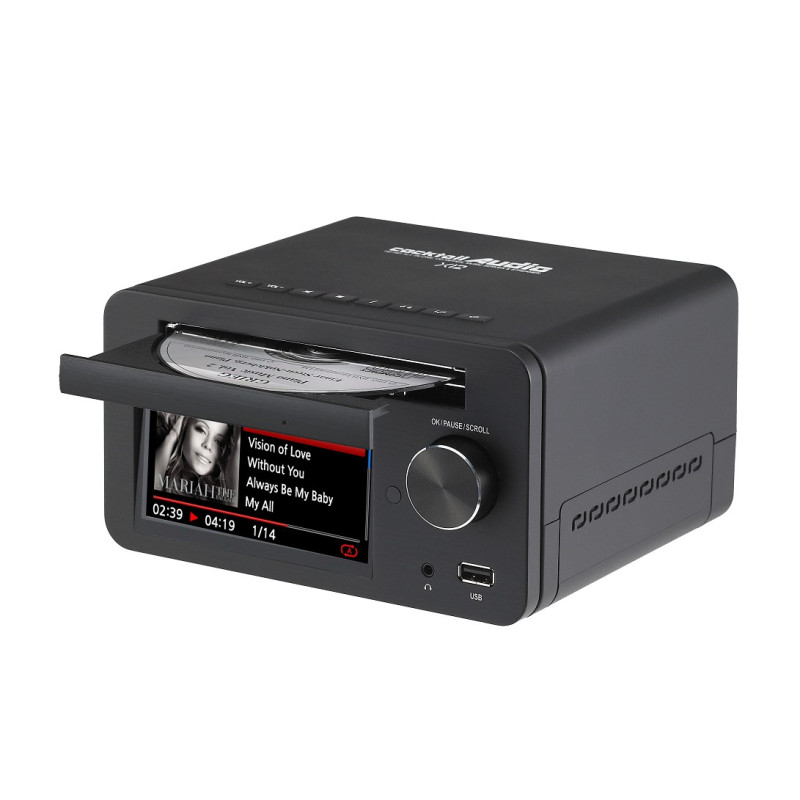

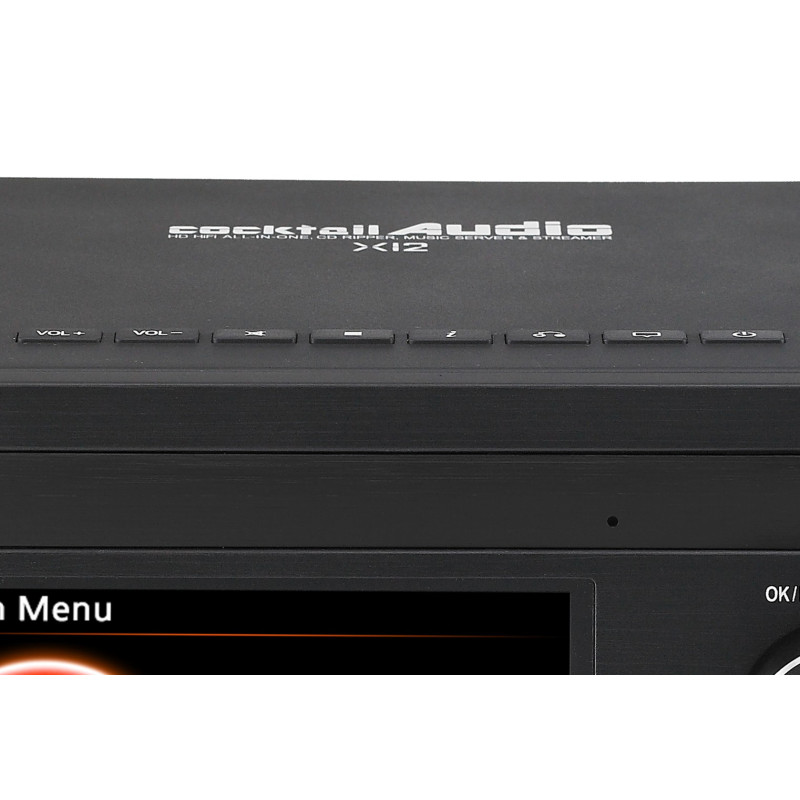

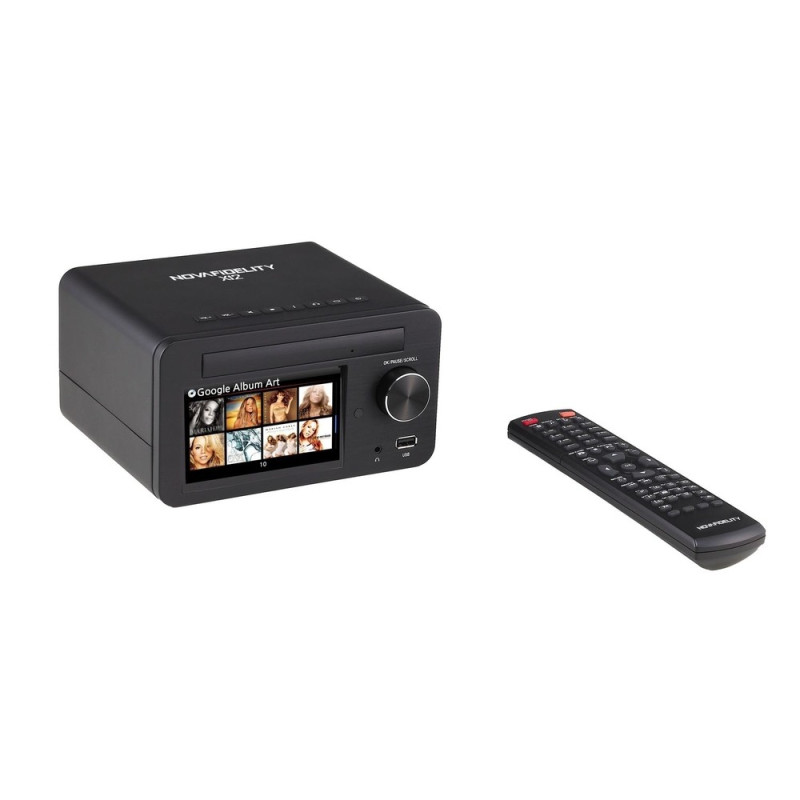

Cocktail Audio X12 >Todo en Uno con HDD de hasta 4TB. (no incluido)
• Amplificador 2 x30 W

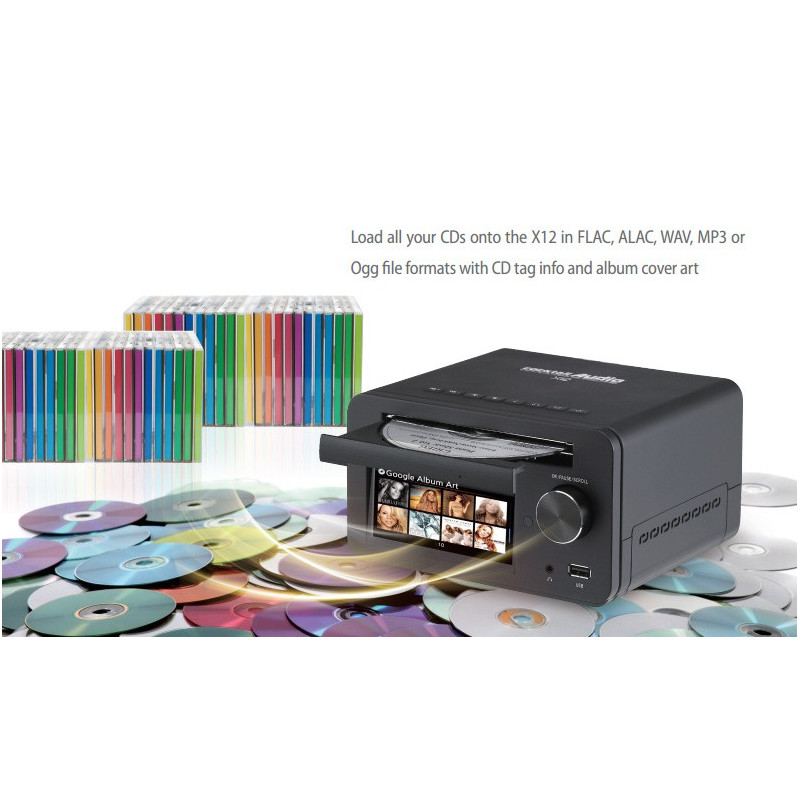

• Reproductor de CD con función de copia a alta velocidad al disco duro
• Alojamiento para HDD interno de hasta 4TB - 3,5” - 2,5” y SSD 3,5”
• Internet Radio (Reciva) servicios como SIMFY - qobuz (depende del pais)
• Servidor Musical / Network Streamer (24bit/192Khz)

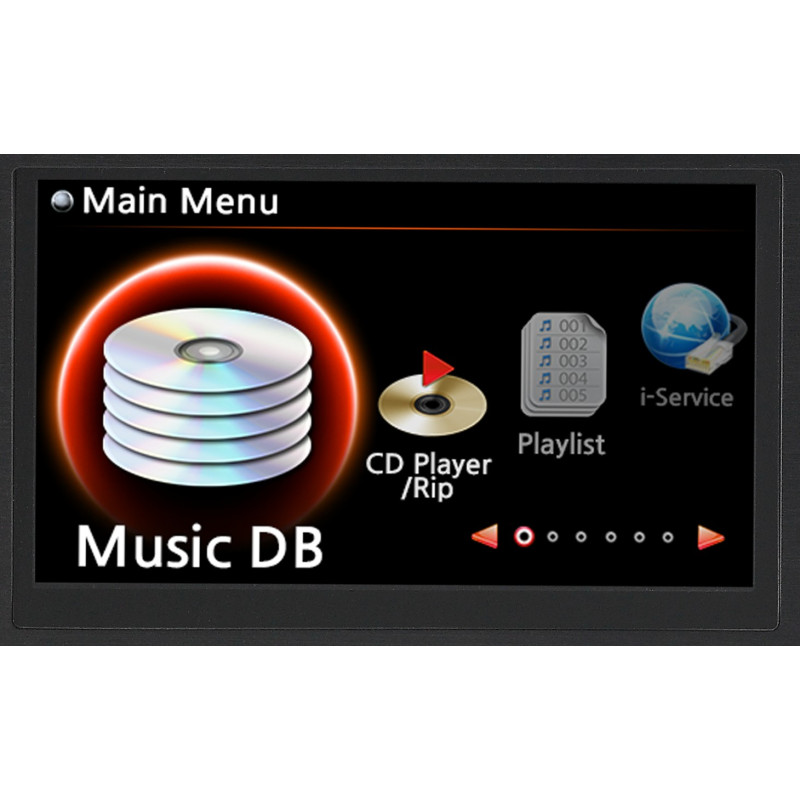

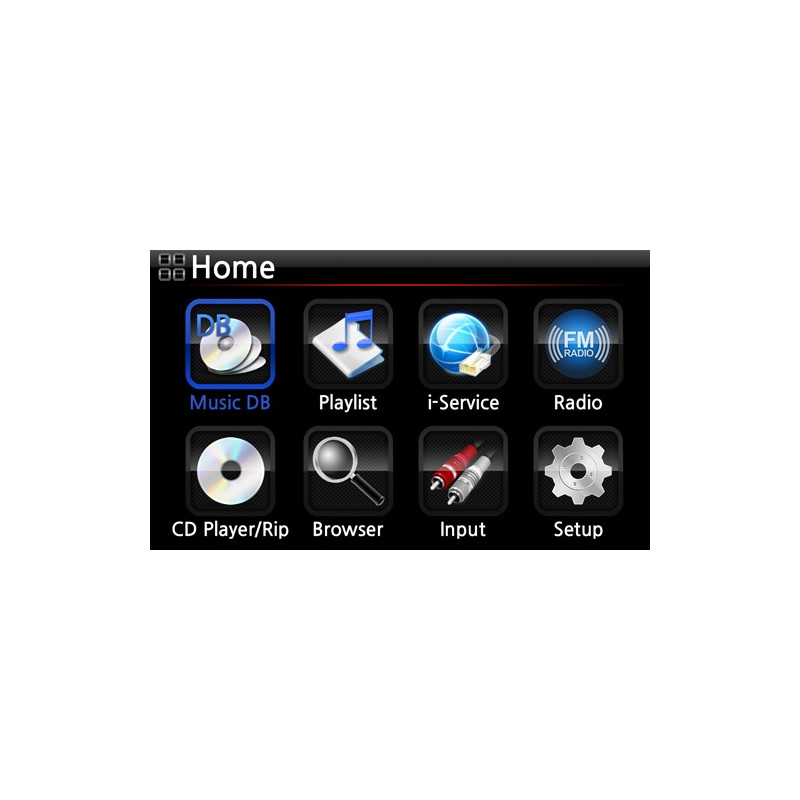

• Display 4,3” a color para el facil manejo de todas sus funciones
• OSD en español y multitud de idiomas.
• Fuente de alimentación sin ventilador.
• Mando a distancia, posibilidad de control por App de iOS y Android
• Puede utilizar Antena opcional para ccnexión por Wifi

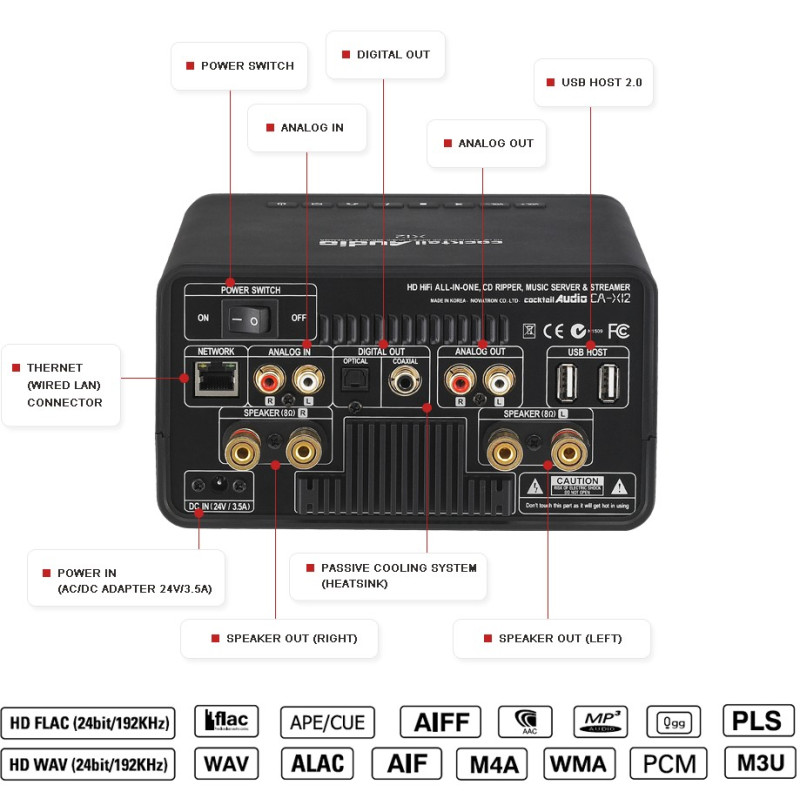

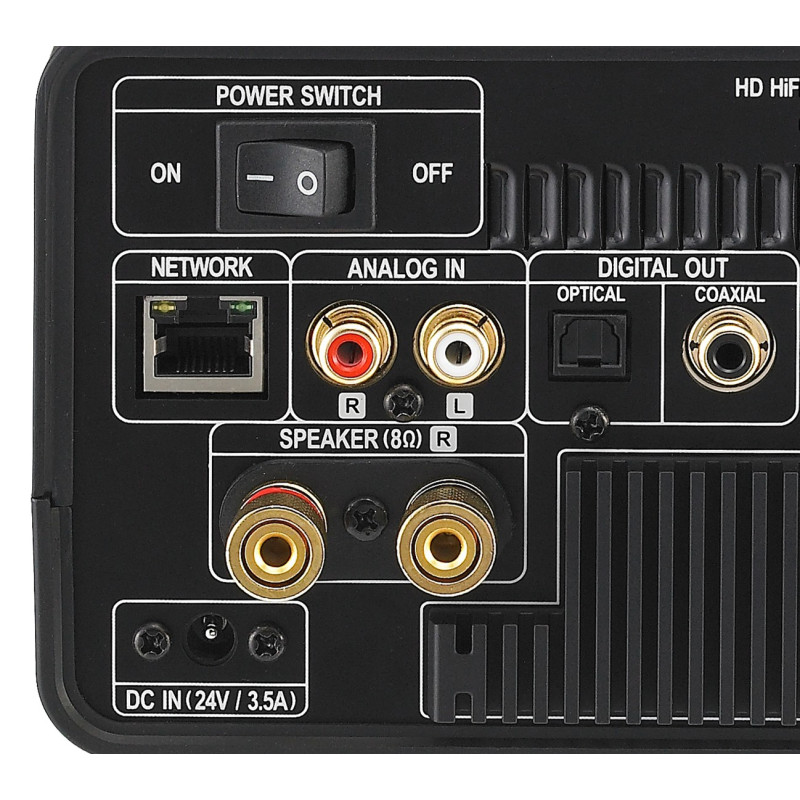

• Entradas:
Ethernet , 2 USB traseros + 1 Frontal , RCA Analogico.

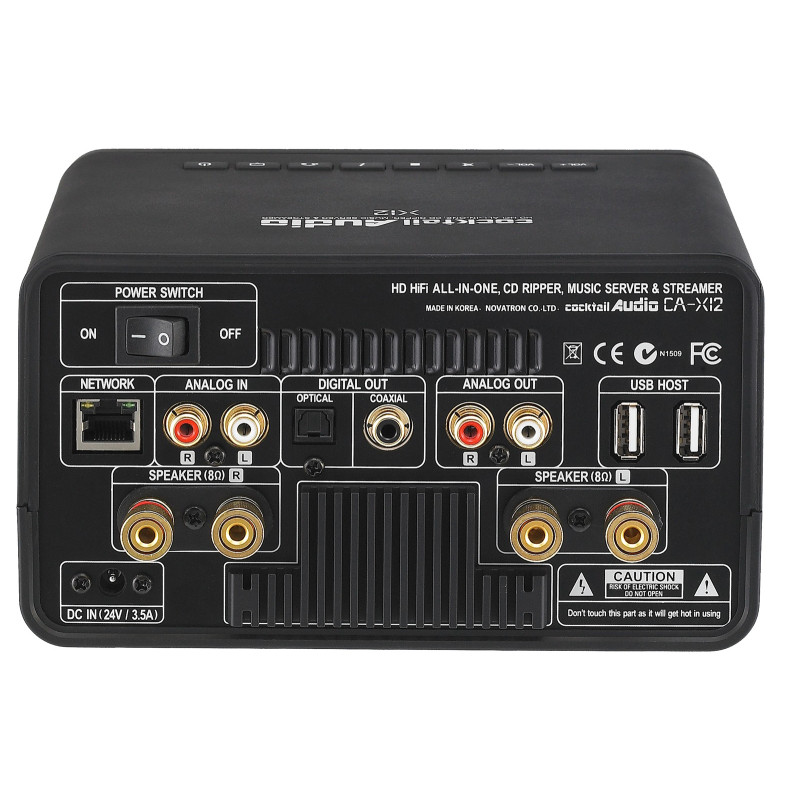

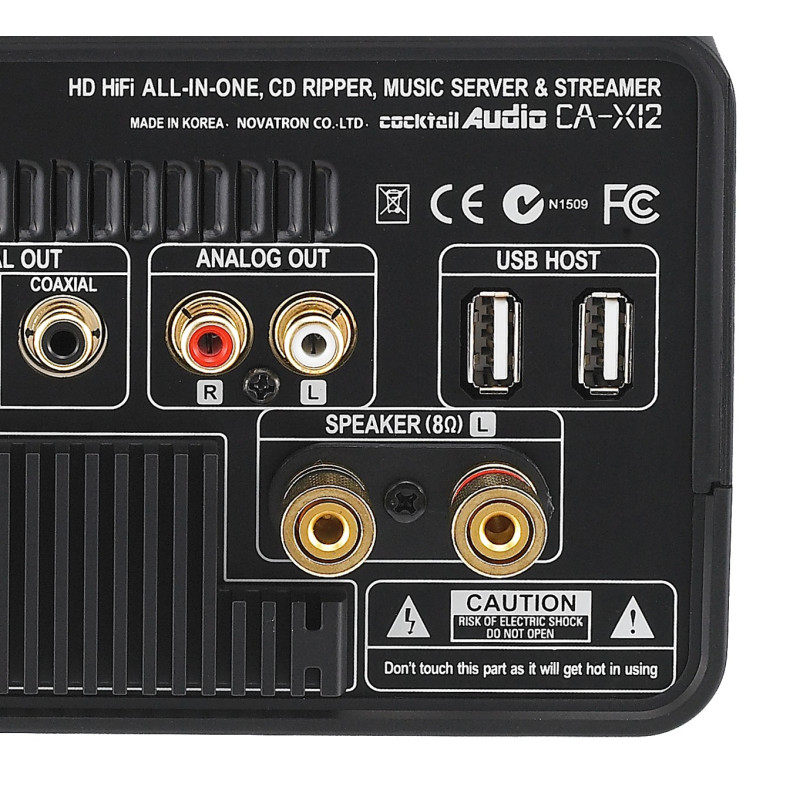

• Salidas:
RCA Analogico, Optica, Coaxial, Salida de auriculares y Salida de Altavoces.
• Dimensiones: (W x D x H) 180 x 150 x 100 mm.
MAS INFO EN LA WEB DEL FABRICANTE
| Model name | CA-X12 | |||
| Host CPU & Memory | Embedded 500Mhz MIPS | |||
| Main Memory (2Gbit, DDR2 667Mhz) | ||||
| Firmware Memory (2Gbit) | ||||
| CD Player | Type | Tray loading | ||
| Supported media | CD, CD-DA, CD-R, CD-RW, DVD-R/RW | |||
| Display | 4.3" TFT LCD (480 x 272 pixels) | |||
| Interface | Remote control, PC, iOS & Android devices with customized Web Interface (WUI) or various free UPnP Tablet & Smartphone Apps | |||
| ANALOG OUT (Volume controllable) | PRE-OUT (RCA) | Dynamic Range : 112dB (Max 2Vrms, Stereo) THD+N : 0.001% | ||

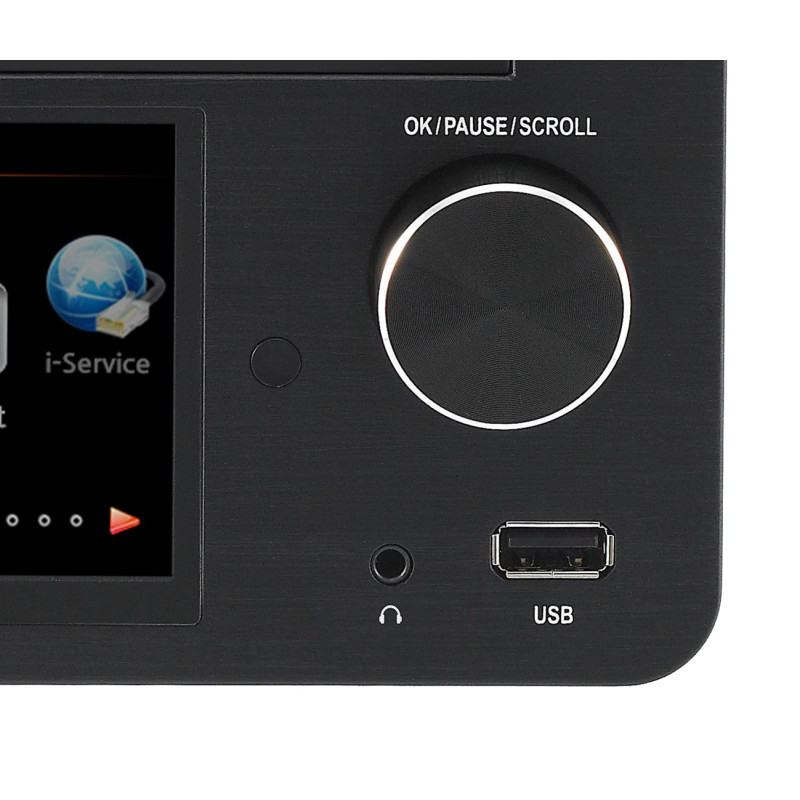

| Headphone Out | R3.5mm jack on the front, 150mW+150mW@1Khz, 16 ohm, 0.1% THD | |||

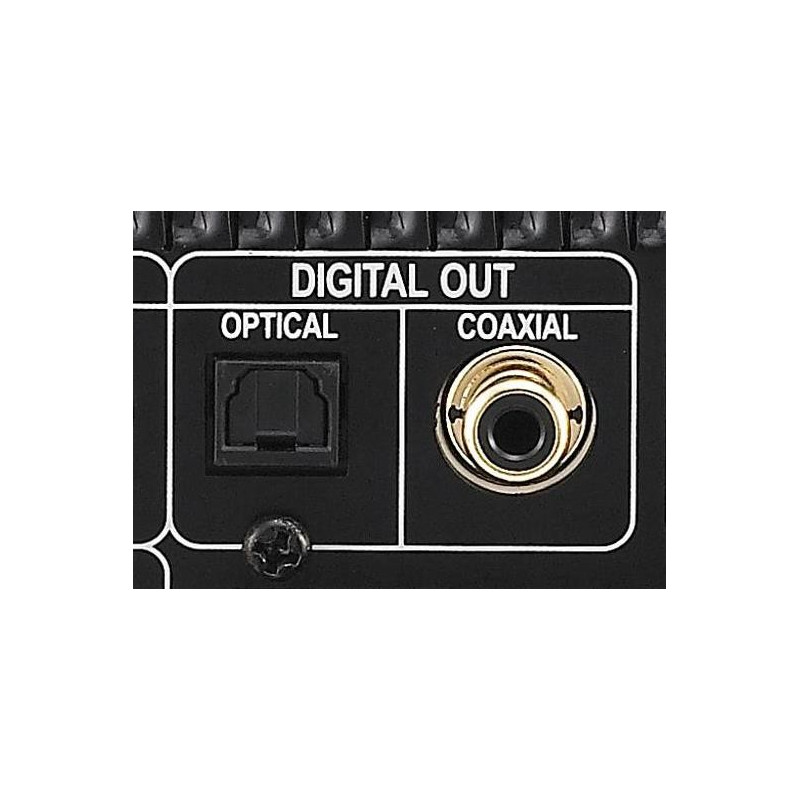

| DIGITAL OUT (Volume controllable) | Toslink x 1 | Supported Sample Rate : up to 24bit/192Khz | ||
| COAXIAL x 1 | SPDIF 75ohm RCA, Supported Sample Rate : up to 24bit/192Khz | |||
| ANALOG INPUT | LINE IN x 1 | L & R RCA at the rear, 1V rms | ||
| Connectivity | 3 x USB Host ports | Front | 1x USB Host | |
| Rear | 2x USB Host | |||
| Network | Wired | Ethernet(100Base-Tx/10Base-T) LAN | ||
| Wireless (Optional) | * 801.11b/g/n WiFi USB dongle (Optional) | |||
| Supported Storage | 2.5inch SATA HDD, SSD and 3.5inch SATA HDD up to 4TB * Supported file system: Linux (ext3), NTFS, FAT32 | |||
| Supported audio Codec & format | HD FLAC (24bit/192KHz), HD WAV (24bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS, etc. | |||
| Supported OSD Languages | English, German, French, Spanish, Italian, Polish, Czech, Dutch, Traditional Chinese, ussian, Danish, Korean, etc (To be added by request) | |||

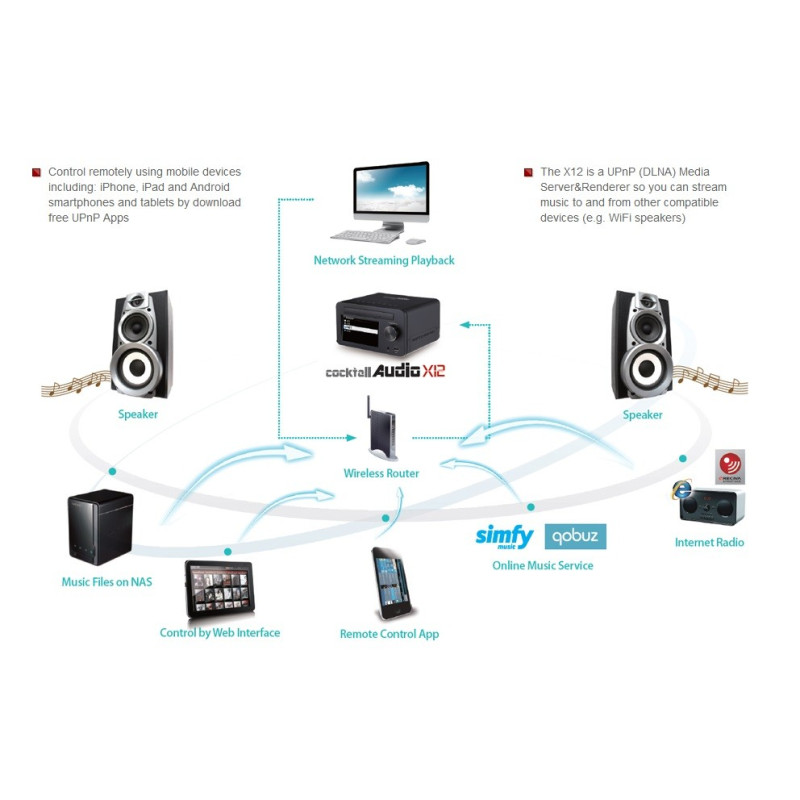

| Network Protocol supported | UPnP (DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc | |||
| Internet Service | Internet Radio | Reciva Internet Radio | ||
| Online Music Service | Qobuz, Simfy ※ Subscription required | |||
| Power (AC/DC Adapter) | INPUT | 100 – 240Vac, 50/60Hz (free voltage) | ||
| OUTPUT | 24V/3.5A | |||
| Dimension | 180mm (W) x 100mm (H) x 150mm (D) | |||
